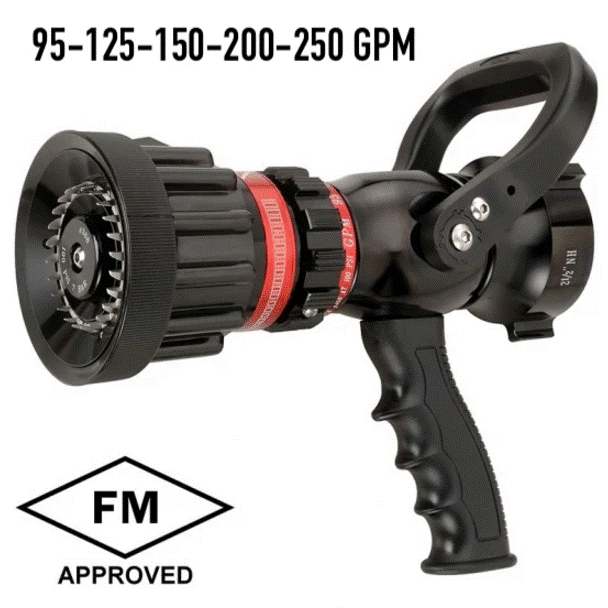

Protek Nozzles (Style: 1368)

Protek's Selectable Gallonage Nozzles are combination pattern nozzles with versatile multiple flow settings.  We offer an expansive line of Select Gallonage Nozzles for your department.  FREE freight and 10 year  warranty.  Call us today!

Features

• Combination pattern nozzles with multiple flow settings.
• Superb wide fog pattern for optimum fire fighter protection.
• Stainless steel spinning teeth.
• Heavy-duty chrome plated metal shutoff ball for smooth action and long life.
• Flow pattern detents facilitate positive positioning and smooth action.
• Raised lug for easier pattern identification.
• Laser-etched anodized label for excellent durability and visibility.
• Flush without changing pattern or shutting down.
• Ergonomic design pistol grip.
• Continuous female swivel inlet with stainless steel strainer.
• Minimal maintenance reflected in robust design, precision machining and quality materials.
• NFPA 1964 Compliant
• Uses Foam Aeration Tube: 1215
• Uses Medium Expansion Foam Tube: 1227
• FM Approved

Specifications

• Style: 1368
• Flow Rate: 95-125-150-200-250 GPM (360-475-550-750-950 LPM)
• Operating Pressure: 100 psi (7 bar)
• Waterway: 1 3/8”
• Inlet: 2 1/2" (65 mm) – NH or NPSH
• Length: 11.0" (260 mm)
• Weight: 6.3 lbs (2.8 kg)
