POSITIVE PRESSURE VENTILATOR

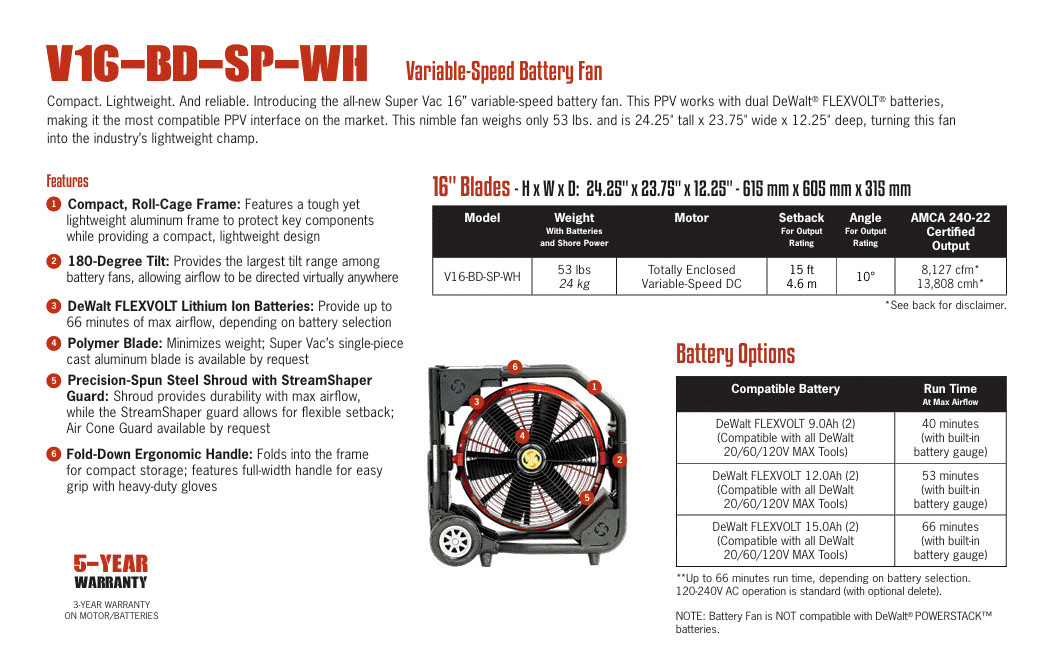

 A Super Vac, part number V16-BD-SP-WH, 16" variable-speed battery fan shall be
supplied. The unit shall be designed with a lightweight roll-cage frame with
strategic placement of bracing members to enable easy carrying of the fan.
 The entire frame of the unit shall be constructed of aluminum that shall surround
the shroud and a six-blade 16” airfoil propeller in a roll-cage design, which shall
enhance lifting and user safety. The blade shall be constructed of polymer and
driven by an battery-powered motor with a direct drive connection. Any ventilators
utilizing belts, pulley, gears or additional shafts shall not be acceptable.
 The unit shall be compatible with a DeWalt® FLEXVOLT® lithium ion battery system
(dual 9Ah, 12Ah or 15Ah batteries) that is commercially available for low cost and
ease of replacement. A dual 12Ah battery system shall enable the fan to operate
for up to 53 minutes on a single charge delivering a maximum amount of air ow;
the 9Ah battery system shall operate for up to 40 minutes, and the 15Ah battery
system shall operate for up to 66 minutes. Fans using proprietary battery systems
shall not be acceptable due to higher cost and limited supply.
The shroud and the safety grill shall be designed to provide maximum air velocity.
The positive pressure ventilator shall have 180-degree tilt capability. The front
and rear safety guards shall be designed to OSHA and U.L. Standards to prevent
accidental contact with the blade.
 The fan shall include shore power, allowing continuous operation off any 120-240V
AC supply.
The air movement shall meet 8,127 cubic feet per minute, according to the AMCA
240-22 Standard. Any fans tested to the former AMCA 240-16 standard shall not
be considered.
 The variable-speed battery fan shall be designed with the following:
 Motor:
Power:
Speed:
Air ow*:
Dimensions:
Weight:
Totally Enclosed Variable-Speed DC
 1 HP
 2,100 rpm
 8,127 cfm (13,808 cmh)
24.25" x 23.75" x12.25" (615 mm x 605 mm x 315 mm)
 53 lbs. (24 kg) (Weight with batteries and shore power)
 The PPV shall have a minimum ve (5) year warranty. The battery and charger are
warranted by DeWalt for three (3) years. See www.dewalt.com for details.
*The listed ratings are based on tests and procedures in accordance with
AMCA Standard 240-22. All other outputs in this chart are based on results from
comparable AMCA 240-22 testing procedures. The AMCA 240 Standard was
revised in 2022 to speci cally test battery-powered PPV fans and was created
in collaboration with industry experts, select reghters and PPV manufacturers.
The new test reects improved variables, including a smaller doorway (to match
international standards), constant power supply (since battery power drops over
time) and documentation of battery runtimes (to assure accuracy). These variables
deliver more accurate, yet lower air ows compared to identical fans tested to the
old AMCA 240-16 standard.
